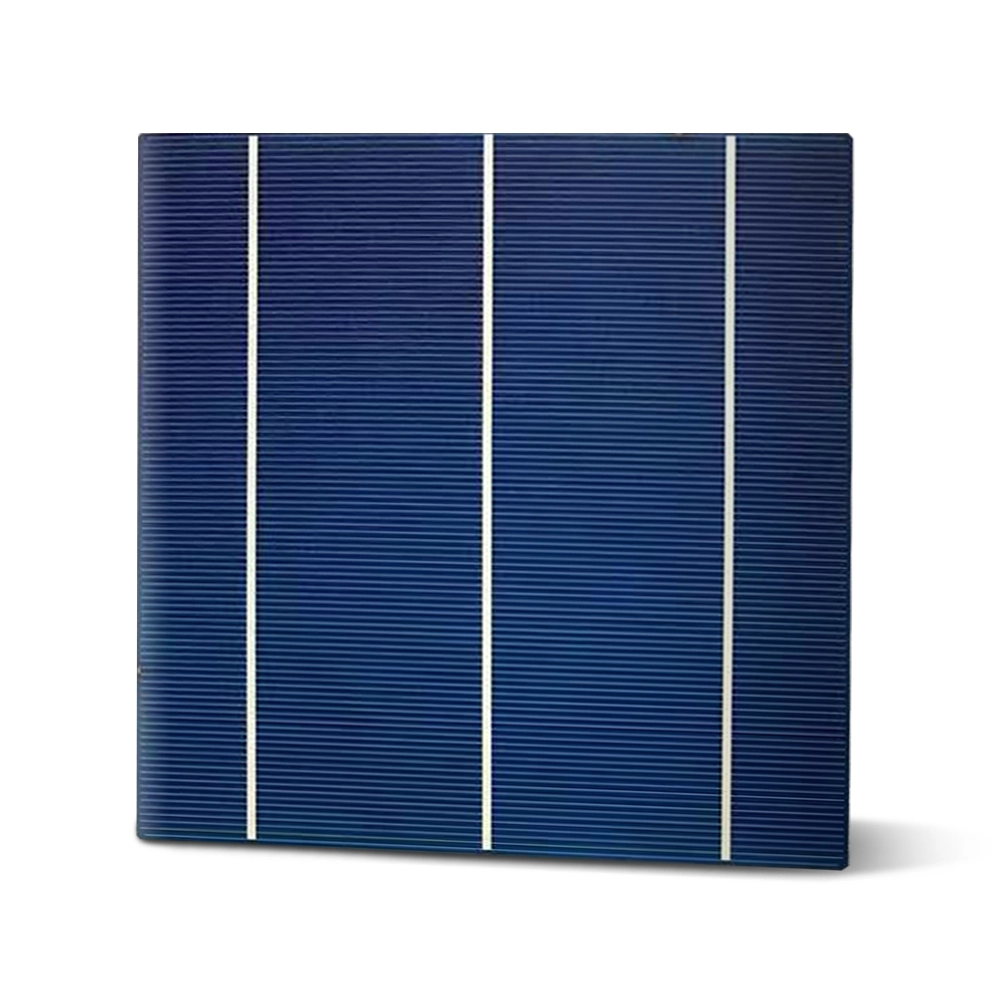

LKS-157mm-3BB Poly

LKS-157mm-3BB Poly

 Product: Poly-crystalline Silicon Solar Cell

 Dimension: 157mmx157mm, tolerance±0.5mm

 Thickness: 170μm, tolerance±20μm

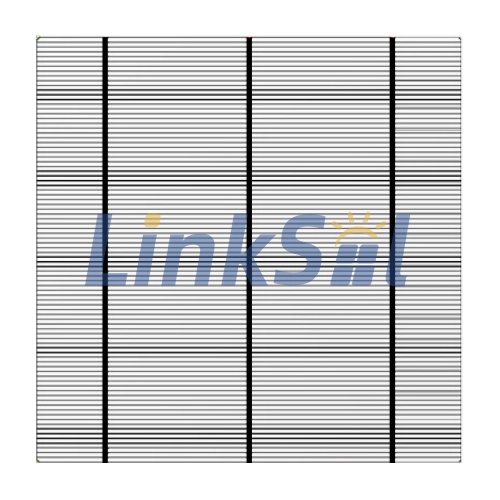

 Front (cathode): Blue silicon nitride anti-reflection coating Front (cathode). Three row 1.4mm wide discontinuous silver bus bars

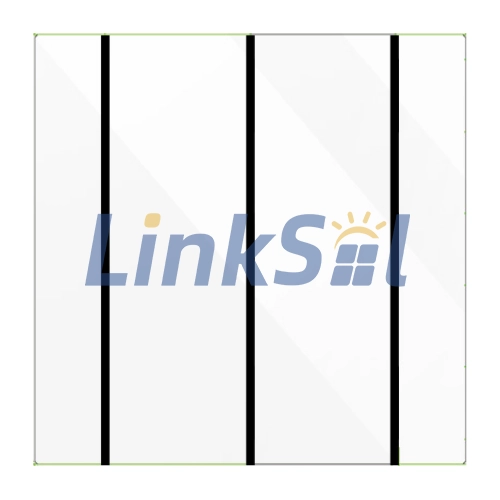

 Back (anode): Aluminum back surface field Back(anode)Three row 2.5mmwide discontinuous silver soldering pads

0.00
0.00


 Product: Poly-crystalline Silicon Solar Cell

 Dimension: 157mmx157mm, tolerance±0.5mm

 Thickness: 170μm, tolerance±20μm

 Front (cathode): Blue silicon nitride anti-reflection coating Front (cathode). Three row 1.4mm wide discontinuous silver bus bars

 Back (anode): Aluminum back surface field Back(anode)Three row 2.5mmwide discontinuous silver soldering pads

Electrical Characteristics

Efficiency(%)Pmpp(Wp)Vmpp (V)Impp(A)Voc(V)Isc(A)FF(%)
18.6%+4.580.5438.420.6398.9080.4
18.5%+4.550.5418.400.6378.8980.3
18.4%+4.530.5398.380.6368.8780.1
18.3%+4.500.5378.370.6348.8680.0
18.2%+4.480.5368.340.6338.8479.9
18.1%+4.450.5348.330.6328.8279.8
18.0%+4.430.5338.290.6318.8179.5
17.8%+4.380.5308.250.6298.7779.3
17.6%+4.330.5278.200.6278.7379.0
17.4%+4.280.5248.160.6258.6878.6
17.2%+4.230.5228.100.6248.6478.4
17.0%+4.180.5208.030.6208.6078.3


Temperature Coeffients

TkCurrent:+0.06%/℃
TkVoltage:-0.32%/℃
TkPower:-0.38%/℃

STC:lrradiance 1000W/m², Cell temperature 25 ℃, AM1.5G.Pmpp ±1.5%, Efficiency ±0.2%

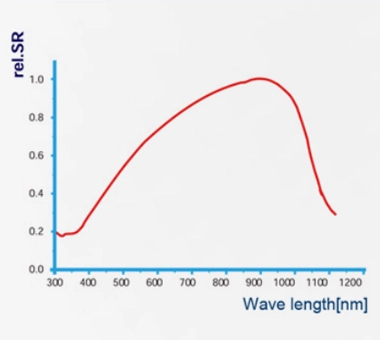

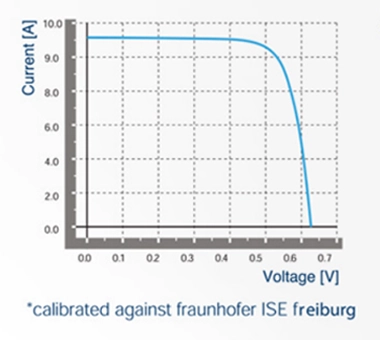

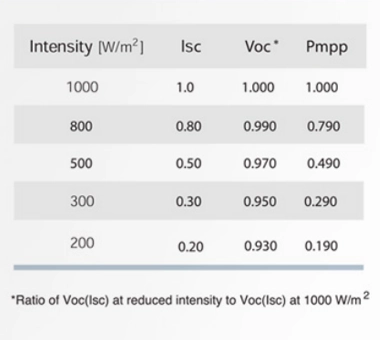

IV CURVESPECTRAL RESPONSEINTENSITY DEPENDENCE

Specifications subjects to technical changes and test, Shanghai Linksol New Energy Co,td reserves the right of final interpretation
