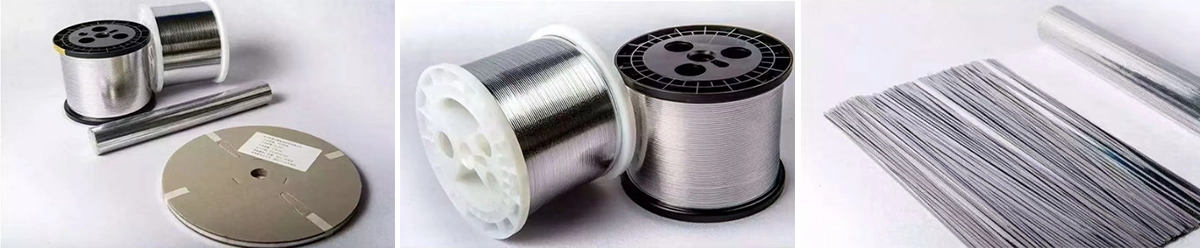

PV ribbons

0.00

◊	Environmental protection: PV Ribbon has already passed SGS test with Europe Union RoHS directive standards.
◊	Copper: oxygen-free copper wire planish,Contain copper quantity≥99.97%, Conductivity≥100%.
◊	Copper elecrical resistivity: Oxygcn-frec copper≤0.0165Ωmm²/m. T2 copper≤0.01722mm²/m
◊	Component: 63%Sn37%Pb,60%Sn40%Pb(TM-A) 42%Sn58%Bi,96.S%Sn3.0%Ag0.5%Cu,99%Sn1%Ag (TM-B) 62%Sn36%Pb2%Ag(TM-c)
◊	Solder tin melting point: 70-217℃
◊	Tensile Strength:≥200N/mm²
◊	Elongation:≥25%
◊	According to customer requirements, we can provide different chemical coating and different sizes of products

Type	Specifiation	Thickness of Copper	Packed by
Type	(Thickness×Width)MM	Thickness of Copper	Packed by
Round Ribbons	Φ0.24	Φ0.21	Roll
	Φ0.26	Φ0.23	Roll
	Φ0.28	Φ0.25	Roll
	Φ0.30	Φ0.27	Roll
	Φ0.32	Φ0.29	Roll
	Φ0.35	Φ0.32	Roll
Interlink Strip	0.17*0.38	0.13	Roll
	0.12*0.5	0.08	Roll
	0.16*0.5	0.14	Roll
	0.12*0.6	0.08	Roll
	0.16*0.6	0.12	Roll
	0.2*0.6	0.16	Roll
	0.05*0.7	0.02	Roll
	0.16*0.7	0.12	Roll
	0.2*0.7	0.16	Roll
	0.08*0.8	0.05	Roll/Coil
	0.12*0.8	0.08	Roll
	0.16*0.8	0.12	Roll
	0.12*0.9	0.08	Roll
	0.16*0.9	0.12	Roll
	0.2*0.9	0.16	Roll
	0.08*1.0	0.05	Roll
	0.12*1.0	0.08	Roll
	0.1*1.2	0.07	Roll
	0.12*1.2	0.8	Roll
	0.16*1.2	0.12	Roll
	0.2*1.2	0.16	Roll
	0.1*1.5	0.07	Roll/Coil
	0.12*1.6	0.08	Roll/Coil
	0.16*1.6	0.12	Roll
	0.1*2.0	0.07	Roll/Coil
	0.12*2.0	0.08	Roll/Coil
	0.16*2.0	0.12	Roll/Coil
	0.12*3.0	0.08	Roll/Coil
Bus bar	0.15*3.0	0.11	Roll/Coil
	0.15*4.0	0.11	Roll/Coil
	0.15*5.0	0.11	Roll/Coil
	0.15*6.0	0.11	Roll/Coil
	0.15*8.0	0.11	Roll/Coil
	0.15*10	0.11	Coil
	0.12*13	0.11	Coil
	0.12*16	0.11	Coil
	0.2*3.0	0.16	Roll/Coil
	0.2*4.0	0.16	Roll/Coil
	0.2*5.0	0.16	Roll/Coil
	0.2*6.0	0.16	Roll/Coil
	0.25*6.0	0.21	Roll/Coil
	0.2*8.0	0.16	Roll/Coil
	0.35*5.0	0.31	Roll/Coil
	0.35*6.0	0.31	Roll/Coil
	0.35*8.0	0.31	Roll/Coil
Remark	The black color bus bar is also available Can tailor made diffierent size according to your requirement
