LKS-210MM-18BB Topcon

LKS-210MM-18BB Topcon

 Product: Topcon Solar Cell

 Dimension: 210mm*210mm±0.5mm

 Thickness: 150±10%μm，140±10%μm，130±10%μm

 Front (cathode): The front pattern with 18 busbars 11.29 mm Distance of 11.29 mm between two silver busbars

 Back (anode): The backside pattern with 18 busbars 11.29 mm Distance of 11.29 mm between two Ag/Al busbars


0.00
0.00


 Product: Topcon Solar Cell

 Dimension: 210mm*210mm±0.5mm

 Thickness: 150±10%μm，140±10%μm，130±10%μm

 Front (cathode): The front pattern with 18 busbars 11.29 mm Distance of 11.29 mm between two silver busbars

 Back (anode): The backside pattern with 18 busbars 11.29 mm Distance of 11.29 mm between two Ag/Al busbars


Electrical Characteristics

Efficiency(%)Pmpp(Wp)Vmpp (V)Impp(A)Voc(V)Isc(A)FF(%)
25.5%11.2440.63317.7780.73618.06684.46
25.4%11.2000.63317.7080.73518.04084.46
25.3%11.1560.63217.6660.73418.01784.36
25.2%11 1120.63117.6240.73317.98884.28
25.1%11.0680.63017.5820.73217.96684.16
25.0%11.0240.62917.5400.73117.95384.00
24.9%10.9800.62817.4980.73017.92883.90
24.8%10.9360.62817.4280.73017.91683.61
24.7%10.8920.62717.3850.72817.90583.56
24.6%10.8480.62617.3420.72717.89483.39


Temperature Coeffients

TkCurrent:+0.046%/°K
TkVoltage:-0.26%/°K
TkPower:-0.26%/°K

STC:lrradiance 1000W/m², Cell temperature 25 ℃, AM1.5G.Pmpp ±1.5%, Efficiency ±0.2%

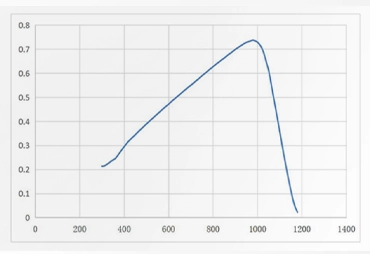

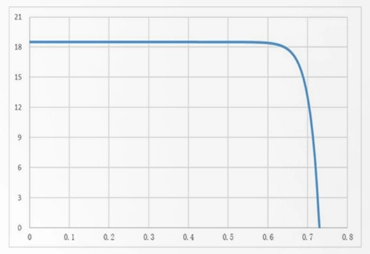

IV CURVESPECTRAL RESPONSE

Specifications subjects to technical changes and test, Shanghai Linksol New Energy Co,td reserves the right of final interpretation
