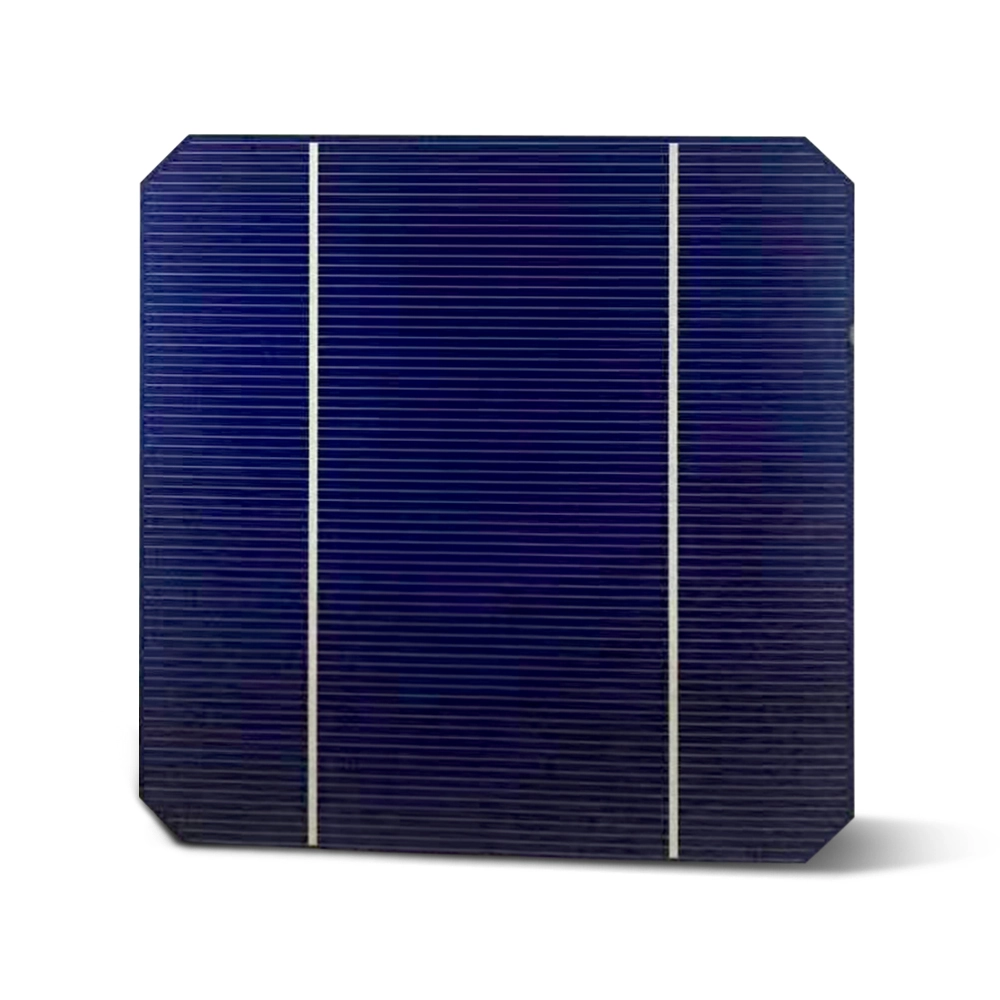

LKS-125mm-2BB Mono

LKS-125mm-2BB Mono

 Product: Mono Crystalline Silicon Solar Cell

 Dimension: 125mm x 125mm ± 0.25mm

 Thickness: 150μm ± 17.5μm

 Front (cathode): 1.1mm bus bars(silver), blue anti-reflecting coating

 Back (anode): 2.5mm wide soldering pads(siliver) back surface field(aluminum)

0.00
0.00


 Product: Mono Crystalline Silicon Solar Cell

 Dimension: 125mm x 125mm ± 0.25mm

 Thickness: 150μm ± 17.5μm

 Front (cathode): 1.1mm bus bars(silver), blue anti-reflecting coating

 Back (anode): 2.5mm wide soldering pads(siliver) back surface field(aluminum)

Electrical Characteristics

Efficiency(%)Pmpp(Wp)vmpp (V)Impp(A)Voc(V)Isc(A)FF(%)
20.2%3.140.5445.5950.6396.00880.19
20.0%3.110.5425.5750.6385.98879.89
19.8%3.070.5405.5450.6375.97579.49
19.6%3.030.5405.5250.6375.96579.08
19.4%3.000.5385.5050.6365.94578.66
19.2%2.970.5365.4850.6355.92578.44
19.0%2.940.5345.4550.6345.92578.2


Temperature Coeffients

TkCurrent:+0.07%/K
TkVoltage:-0.36%/K
TkPower:-0.38%/K

STC:lrradiance 1000W/m², Cell temperature 25 ℃, AM1.5G.Pmpp ±1.5%, Efficiency ±0.2%


Specifications subjects to technical changes and test, Shanghai Linksol New Energy Co,td reserves the right of final interpretation
