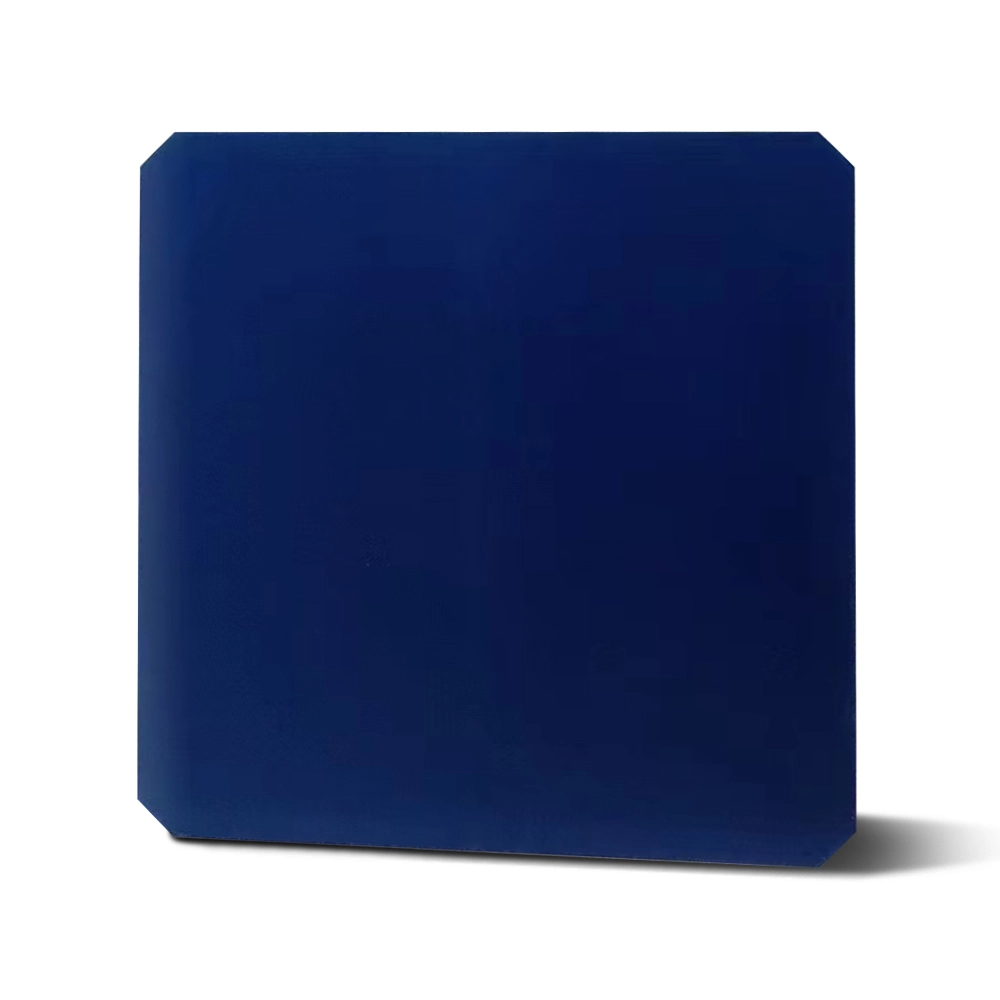

LKS-183.75mm-BC

LKS-183.75mm-BC

 Product: BC Solar Cell

 Dimension: 91.875mmx182mm±0.25mm，R125.0mm±0.25mm

 Thickness: 165μm±16.5μm

 Front (cathode): Silicon nitride anti-reflection coating

 Back (anode): 1.3 mm discontinuous soldering pads


0.00
0.00


 Product: BC Solar Cell

 Dimension: 91.875mmx182mm±0.25mm，R125.0mm±0.25mm

 Thickness: 165μm±16.5μm

 Front (cathode): Silicon nitride anti-reflection coating

 Back (anode): 1.3 mm discontinuous soldering pads


Electrical Characteristics

Efficiency(%)Pmpp(Wp)Vmpp (V)Impp(A)Voc(V)Isc(A)FF(%)
26.4%8.790.64913.550.73914.14184.14
26.3%8.760.64813.520.73814.12584.03
26.2%8.730.64713.490.73714.10983.92
26.1%8.690.64613.460.73614.09383.80
26.0%8.660.64513.430.73514.07783.69
25.9%8.630.64413.390.73414.06183.58
25.8%8.590.64313.360.73314.04583.46
25.7%8.560.64213.330.73214.02983.35
25.6%8.530.64113.300.73114.01383.23
25.5%8.490.64013.270.73013.99783.12
25.4%8.460.63913.240.72913.98183.00
25.3%8.430.63813.210.72813.96582.88
25.2%8.390.63713.180.72713.95182.75
25.1%8.360.63613.140.72613.93582.63
25.0%8.330.63513.110.72513.91982.51


Temperature Coeffients

TkCurrent:+0.03%/°K
TkVoltage:-0.23%/°K
TkPower:-0.238%/°K

STC:lrradiance 1000W/m², Cell temperature 25 ℃, AM1.5G.Pmpp ±1.5%, Efficiency ±0.2%
